ATL Formula & Sports Racer Fuel Cells
Back Racing Home Printer Friendly .PDF   Next
Click Here to Learn More
FIA and SCCA Approved!
FIA & SCCA APPROVED!
ATL builds hundreds of Formula and Sports Racer bladders each year for hydrocarbon and E15 fuels. Many of those are custom sizes and shapes and include options like built-in collectors and fuel pumps. If you have a unique bladder requirement, simply call ATL and speak to one of our Sales Engineers. ATL also offers many "standard" sized fuel bladders for SCCA Spec Racers, Formula Mazda and Van Dieman race cars. Simply take a look below to discover ATL's "standard" line of Formula & Sports Racer fuel bladders! Also, ask about our lightweight, ALL-FUEL FluroCell® compatible bladder material if you plan on running E85 fuel!
SCCA Spec Racer Fuel Bladder
SCCA Spec Racer Fuel Bladder
FB 181
7 Gallon SCCA Spec Racer Fuel Bladder
 Includes: Bladder, Safety Foam Baffling & Nut-Ring
Fill Plate NOT Included

ATL "Wedge" & "Pod" Shaped Fuel Bladders (See Table Below for Complete List)

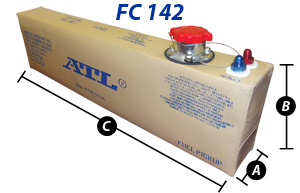

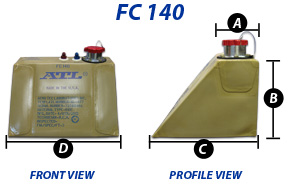

ATL FC 140 Wedge Fuel Bladder ATL FC150 Wedge Fuel Bladder ATL FC142 Pod Fuel Bladder
Standard Formula & Sports Racer Bladder Specs
NOMINAL
Capacity Complete Nominal Dimensions Filler Vent   Weight
GAL. LITERS Cell Part # A" B" C" D" Neck Valve Pick-Up lbs.
4 15.2 FC140 4.0 8.0 11.0 15.0 2-1/4" #6 AN #6 AN 3.4
5 19 FC150 4.0 9.0 15.0 16.0 2-1/4" #6 AN #6 AN 4.3
5 19 FC152 4.0 9.0 17.0 14.0 2-1/4" #6 AN #6 AN 4.3
7.5 28.5 FC157 4.0 9.0 15.0 24.0 2-1/4" #6 AN #6 AN 6.4
4 15.2 FC142 4.0 8.0 30.0   2-1/4" #6 AN #6 AN 3.6
6 22.75 FC160 5.0 8.0 36.0   2-1/4" #6 AN #6 AN 4.6
Optional Aluminum Containers
Optional Aluminum Containers
Add -AC to Part #


Formula Mazda Fuel Bladders Van Dieman Fuel Bladders
FB 10-4126 FB 10-3064 FB 10-5487 FB 10-1376 FB 10-3461 FB 10-5524
Pro-Formula Mazda
 Includes: Bladder, Safety Foam Baffling & Nut-Rings		 Mazda Sports Racer
 Includes: Bladder, Safety Foam Baffling & Nut-Rings		 Mazda Sports Racer
 Includes: Bladder, Safety Foam Baffling & Nut-Rings		 7 Gallon Van Dieman Replacement Bladder
 Includes: Bladder, Safety Foam Baffling, (1) TF350 #6 Vent Valve, (1) #6 Outlet & (2) Nut-Ring Flanges		 5 Gallon Van Dieman Replacement Bladder
 Includes: Bladder, Integral Filler Tube & (1) #6 Outlet, Located at the Bottom Center in Rear of Bladder		 5 Gallon Van Dieman Replacement Bladder
 Includes: Bladder, Integral Filler Tube, (1) #6 Outlet, Located at the Bottom Center in Rear of Bladder & Nut-Ring
* Bladder Dimensions are available upon request - Please email ATL for more information on Formula Mazda and Van Dieman bladders
