ATL Super Cell® "200" Series - FIA FT3.5
Back Racing Home Printer Friendly .PDF   Next
Click Here to Learn More

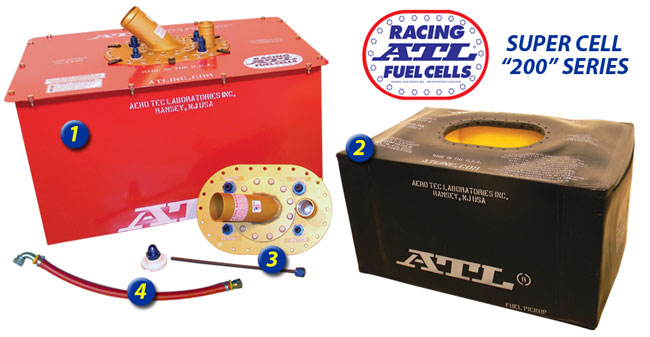

The Components of a
Super Cell® "200" Series
Fuel Cell:
FIA FT3.5
ATL Super Cell "200" Series
Powder Coated 20 Gauge Steel Container
Durable 3-Ply Heavy Duty Bladder:
  • Excellent Hydrocarbon and E15 Resistance
  • FIA FT3.5 Certified and NASCAR 2000 Approved
  • Cross-Drilled Composite Nut-Ring
  • SF-103 Foam Baffling for Slosh & Explosion Suppression
TF193A-184A Quick-Fill Flapper Valve™:
  • (1) 2-1/4” O.D. 45° Flapper Fill Valve
  • (1) 1-1/2” O.D. Vent Valve
  • (1) #8 Outlet
  • (1) #6 Return
  • (1) #6 Dipstick
(1) #8 or #10 ScavenJet™ Pickup with Hose (See Chart Below)
• 5 Year Limited Warranty!
• Ideal for: NASCAR Touring Series (East/West, Canadian Tire and Whelen Modified) & ARCA
Complete ATL Super Cell "200" Series Fuel Cells by Part # Replacement Parts
NOMINAL   NOMINAL       -
Capacity Complete Container Dimensions Wt. Outlet Container       SF103 FOAM
GAL. LITERS Cell Part # L" W" H" Lbs. Size Style   Bladder** Container (Yellow)
22 85 SU222B 25.13 16.88 13.75 34 #8 Top Load   FB222B MC622B BF622B
22 85 SU222C 34.00 17.50 9.50 36 #8 Vertical Edge   FB222C MC622C BF622C
22 85 SU222D* 33.00 17.00 9.25 37 #10 Flange Load   FB222D MC622D BF622D
22 85 SU222D-EL* 33.50 17.00 9.25 37 #10 End Load   FB222D MC622D BF622D
22 85 SU222E 33.00 17.00 9.25 35 #8 Vertical Edge   FB222E MC622E BF6122E
* "D" Cells have a TF500 Ball Valve & #10 Outlet ** Replacement Bladders include safety foam, nut-ring and gasket

Options
Built-In Surge Tank
Add -BI2 (2-Door) to P/N
(Circle Track)		 Built-In Surge Tank
Add -BI3 (3-Door) to P/N
(Road Race/Off-Road)		 SF112
Large Pore Foam
Add -LPF to Cell Part
TF500
Heavy-Duty NASCAR
Ball Valve
