ATL BANTAM™ Series - FIA FT3
Back Racing Home Printer Friendly .PDF   Next
Click Here to Learn More

MAXIMUM Fuel, MINIMUM Weight!
Perfect for Long Distance Races Where Maximum Fuel & Minimum Weight are Critical

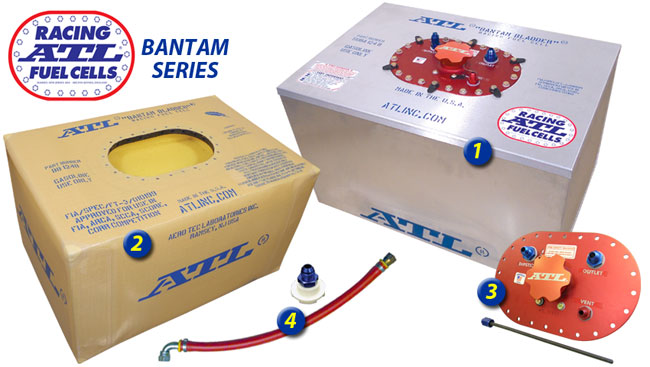

The Components of a
BANTAM™ Series
Fuel Cell:
FIA FT3
ATL BANTAM Series
Light-Weight .063” Aluminum Container
ALL-FUEL Light-Weight Bladder:
  • Ultra Light-Weight Bladder
  • Strong/Thin/Pliable Ballistic Kevlar®
  • FIA FT3 Certified
  • Only .030” thick (0.7mm), Allows for Greater Fuel Capacity
  • Resistant to High Aromatic Hydrocarbons
  • Composite Nut-Ring Flange
  • SF-103 Foam Baffling for Slosh & Explosion Suppression
TF600 Light-Weight Aluminum Fill Plate :
  • (1) Low Profile Aircraft-Cap & Neck w/ Flap Valve
  • (1) #6 Vent-Check Roll-Over Valve
  • (1) #6 Dipstick
  • (1) #6 or #8 Outlet Fitting (See Chart Below)
(1) #6 or #8 Pick-Up and Hose (See Chart Below)
• 5 Year Limited Warranty! • Ideal for: Road Race, Rally, Circle Track, Dirt Track and Offroad Applications!
Complete ATL BANTAM™ Fuel Cells by Part # Replacement Parts
NOMINAL   NOMINAL       -
Capacity Complete Container Dimensions Wt. Outlet Container       SF103 FOAM
GAL. LITERS Cell Part # L" W" H" Lbs. Size Style   Bladder** Container (Yellow)
8 30 SUBA108 20.50 12.50 9.13 10 #6 Top Load   BB108 AC608 BF608
10 40 SUBA110 24.25 12.75 10.25 12 #6 Top Load   BB110 AC610 BF610
12 45 SUBA112 20.40 17.75 9.50 16 #6 Top Load   BB112 AC612 BF612
15 60 SUBA115 24.50 17.75 9.50 18 #8 Top Load   BB115 AC615 BF615
15 60 SUBA115B 20.00 17.00 12.00 18 #8 Top Load   BB115B AC615B BF615B
17 65 SUBA117* 34.00 17.50 7.13 20 #8 Vertical Edge   BB117 AC617 BF617
22 85 SUBA122A 25.88 25.88 8.50 21 #8 Top Load   BB122A AC622A BF6221
22 85 SUBA122B 25.13 16.88 13.75 21 #8 Top Load   BB122B AC622B BF622B
22 85 SUBA122C 34.00 17.50 9.50 21 #8 Vertical Edge   BB122C AC622C BF622C
22 85 SUBA122E 33.00 17.00 9.25 21 #8 Vertical Edge   BB122E AC622E BF622E
22 85 SUBA122F* 31.50 17.75 10.00 21 #8 Vertical Edge   BB122F AC622F BF622F
22 85 SUBA122H* 34.00 17.50 9.50 21 #8 Vertical Edge   BB122H AC622H BF622H
24 90 SUBA124A 24.50 24.50 10.25 22 #8 Shoe Box   BB124A AC624A BF624A
24 90 SUBA124B 25.00 17.00 14.50 22 #8 Shoe Box   BB124B AC624B BF624B
24 90 SUBA124M** 24.50 24.50 10.25 22 #8 Shoe Box   BB124M AC624M BF624M
26 100 SUBA126A 30.00 17.75 14.50 23 #8 Top Load   BB126A AC626A BF626A
26 100 SUBA126B 30.00 14.50 17.75 23 #8 Top Load   BB126B AC626B BF626B
26 100 SUBA126C 25.25 16.85 17.25 23 #8 Top Load   BB126C AC626C BF626C
29 110 SUBA129 24.00 24.00 12.50 24 #8 Top Load   BB129 AC629 BF629
32 120 SUBA132A 26.00 26.00 14.00 26 #8 Top Load   BB132A AC632A BF632A
32 120 SUBA132B 26.38 19.00 17.25 26 #8 Top Load   BB132B AC632B BF632B
32 120 SUBA132C 34.25 17.75 14.75 26 #8 Top Load   BB132C AC632C BF632C
44 170 SUBA144 25.88 25.88 17.00 35 #8 Top Load   BB644 AC644 BF644
* Indicates Fill Plate, Offset ** Fill Plate Offset, Designed for Use in Troyer Dirt Modified
Replacement Bladders include safety foam, nut-ring and gasket

Options
ATL TF-702 Quick Fill Plate
TF703
Off-Set Remote-Fill
Paddle Valve™
Add -OS to Cell Part #		 TF525
Quick-Fill
Paddle Valve™
Add -PV to Cell Part #		 TF702
Quick-Fill, Off-Set
Paddle Valve™
Add -PV2 to Cell Part #		 TF193A-184A
Quick-Fill
Flapper Valve™
Add -FV to Cell Part #		 Built-In Surge Tank
Add -BI2 (2-Door) to P/N
(Circle Track)
Add -BI3 (3-Door) to P/N
(Road Race/Off-Road)
Fuel Level Kit
Capacitance Style
Add -LS/C to Cell Part #		 Fuel Level Kit
Float Style
Add -LS/F to Cell Part #
