ATL FluoroCell® "600" Series - FIA FT3, FT3.5 |
 |
| Back |
Racing Home |
Printer Friendly .PDF |
|
Next |
 |
The First and Only ALL FUEL Bladder! Accepts: • Leaded and Unleaded Race Fuel • Ethanol Blends: E10, E15, E50, E85, E100 • Methanol • Diesel, Bio-Diesel, Bio-Butanol • Jet A, Jet B, JP8, JP10 • "HRJ", Avgas and 100LL
|

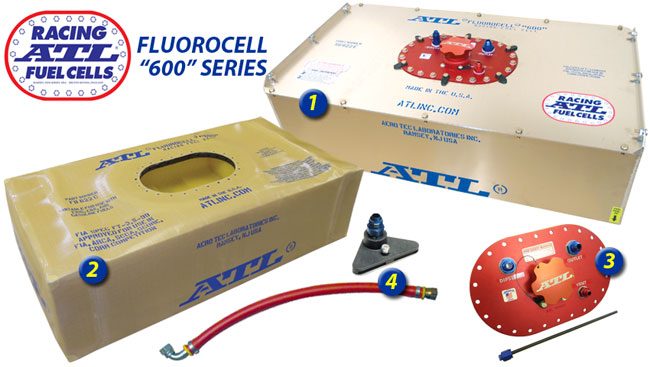

The Components of a
FluoroCell® "600" Series
Fuel Cell: |
 |
 |
 |
Light-Weight .063” Aluminum Container |
 |
ALL-FUEL Light-Weight Bladder:
- Kevlar® Reinforced Rubber
- Light/Thin/Pliable/Durable
- Exceeds FIA FT3.5 Specs
- Accommodates ALL Road Fuels & Race Fuels
- Composite Nut-Ring Flange
- SF-103 Foam Baffling for Slosh & Explosion Suppression (NOTE: Certain Fuels Require
Removal or Replacement of Safety Foam. Please Call an ATL Sales Engineer to Determine Compatibility.)
|
 |
TF600 Light-Weight Aluminum Fill Plate :
- (1) Low Profile Aircraft-Cap & Neck w/ Flap Valve
- (1) #6 Vent-Check Roll-Over Valve
- (1) #6 Dipstick
- (1) #6 or #8 Outlet Fitting (See Chart Below)
|
 |
(1) #6 or #8 Pick-Up and Hose (See Chart Below) |
|
| • 5 Year Limited Warranty! • Near Zero Permeation - Perfect for Road Vehicles, Too! |
|
| Complete ATL FluoroCell "600" Series Fuel Cells by Part # |
Replacement Parts |
| NOMINAL |
|
NOMINAL |
|
|
|
- |
|
|
|
| Capacity |
Complete |
Container Dimensions |
Wt. |
Outlet |
Container |
|
|
|
SF103 FOAM |
| GAL. |
LITERS |
Cell Part # |
L" |
W" |
H" |
Lbs. |
Size |
Style |
|
Bladder** |
Container |
(Yellow) |
|
| 8 |
30 |
SU608 |
20.50 |
12.50 |
9.13 |
10 |
#6 |
Top Load |
|
FB608 |
AC608 |
BF608 |
| 10 |
40 |
SU610 |
24.25 |
12.75 |
10.25 |
12 |
#6 |
Top Load |
|
FB610 |
AC610 |
BF610 |
| 12 |
45 |
SU612 |
20.40 |
17.75 |
9.50 |
16 |
#6 |
Top Load |
|
FB612 |
AC612 |
BF612 |
| 15 |
60 |
SU615 |
24.50 |
17.75 |
9.50 |
18 |
#8 |
Top Load |
|
FB615 |
AC615 |
BF615 |
| 15 |
60 |
SU615B |
20.00 |
17.00 |
12.00 |
18 |
#8 |
Top Load |
|
FB615B |
AC615B |
BF615B |
| 17 |
65 |
SU617* |
34.00 |
17.50 |
7.13 |
20 |
#8 |
Vertical Edge |
|
FB617 |
AC617 |
BF617 |
| 22 |
85 |
SU622A |
25.88 |
25.88 |
8.50 |
21 |
#8 |
Top Load |
|
FB622A |
AC622A |
BF6221 |
| 22 |
85 |
SU622B |
25.13 |
16.88 |
13.75 |
21 |
#8 |
Top Load |
|
FB622B |
AC622B |
BF622B |
| 22 |
85 |
SU622C |
34.00 |
17.50 |
9.50 |
21 |
#8 |
Vertical Edge |
|
FB622C |
AC622C |
BF622C |
| 22 |
85 |
SU622E |
33.00 |
17.00 |
9.25 |
21 |
#8 |
Vertical Edge |
|
FB622E |
AC622E |
BF622E |
| 22 |
85 |
SU622F* |
31.50 |
17.75 |
10.00 |
21 |
#8 |
Vertical Edge |
|
FB622F |
AC622F |
BF622F |
| 22 |
85 |
SU622H* |
34.00 |
17.50 |
9.50 |
21 |
#8 |
Vertical Edge |
|
FB622H |
AC622H |
BF622H |
| 24 |
90 |
SU624A |
24.50 |
24.50 |
10.25 |
22 |
#8 |
Shoe Box |
|
FB624A |
AC624A |
BF624A |
| 24 |
90 |
SU624B |
25.00 |
17.00 |
14.50 |
22 |
#8 |
Shoe Box |
|
FB624B |
AC624B |
BF624B |
| 24 |
90 |
SU624M** |
24.50 |
24.50 |
10.25 |
22 |
#8 |
Shoe Box |
|
FB624M |
AC624M |
BF624M |
| 26 |
100 |
SU626A |
30.00 |
17.75 |
14.50 |
22 |
#8 |
Top Load |
|
FB626A |
AC626A |
BF626A |
| 26 |
100 |
SU626B |
30.00 |
14.50 |
17.75 |
23 |
#8 |
Top Load |
|
FB626B |
AC626B |
BF626B |
| 26 |
100 |
SU626C |
25.25 |
16.85 |
17.25 |
23 |
#8 |
Top Load |
|
FB626C |
AC626C |
BF626C |
| 29 |
110 |
SU629 |
24.00 |
24.00 |
12.50 |
24 |
#8 |
Top Load |
|
FB629 |
AC629 |
BF629 |
| 32 |
120 |
SU632A |
26.00 |
26.00 |
14.00 |
26 |
#8 |
Top Load |
|
FB632A |
AC632A |
BF632A |
| 32 |
120 |
SU632B |
26.38 |
19.00 |
17.25 |
26 |
#8 |
Top Load |
|
FB632B |
AC632B |
BF632B |
| 32 |
120 |
SU632C |
34.25 |
17.75 |
14.75 |
26 |
#8 |
Top Load |
|
FB632C |
AC632C |
BF632C |
| 44 |
170 |
SU644 |
25.88 |
25.88 |
17.00 |
35 |
#8 |
Top Load |
|
FB644 |
AC644 |
BF644 |
* Indicates Fill Plate, Offset ** Fill Plate Offset, Designed for Use in Troyer Dirt Modified
Replacement Bladders include safety foam, nut-ring and gasket |
| Options |
|
 |
 |
 |
 |
 |
TF703
Off-Set Remote-Fill
Paddle Valve™
Add -OS to Cell Part # |
TF525
Quick-Fill
Paddle Valve™
Add -PV to Cell Part # |
TF193A-184A
Quick-Fill
Flapper Valve™
Add -FV to Cell Part # |
Built-In Surge Tank
Add -BI2 (2-Door) to P/N
(Circle Track)
Add -BI3 (3-Door) to P/N
(Road Race/Off-Road) |
SF110
Alcohol Foam
Add -MF to Cell Part # |
|
 |
 |
Fuel Level Kit
Capacitance Style
Add -LS/C to Cell Part # |
Fuel Level Kit
Float Style
Add -LS/F to Cell Part # |
|
