			ATL Super Cell® "500" Series - FIA FT5, SF 32.1 & 32.2
Back	Racing Home	Printer Friendly .PDF		Next

ATL and CV Products Team Up to Create the Ultimate EFI Fuel Cell System
Exclusively for NASCAR Sprint Cup Competition

We are excited to announce our new partnership with CV Products. By joining forces, we will be able to offer NASCAR Sprint Cup teams a COMPLETE Electronic Fuel Injection (EFI) fuel cell system.

The package includes an ATL "500" Series FIA FT5 rated fuel bladder that is fully foam baffled with ATL's SF112 large pore foam. A 2-Door Surge Tank is built directly into the right rear corner of the bladder (pictured below) along with 2 sets of fabric fuel pump holders. Two lift pumps are then securely fastened into each rear corner of the fuel bladder. The lift pumps feed into the high-pressure fuel pump that is located in the aluminum quick-fill plate. The final component to the system is the 18-gauge, powder-coated steel container. Together, these components deliver a seamless, uninterupted flow of fuel to the engine.

ATL EFI fuel cell systems are exclusively available through CV Products.

The Components of a Non-EFI Super Cell® "500" Series Fuel Cell:
Ideal for NASCAR Nationwide and Camping World Truck Competition

FIA FT5

	18 Gauge Master-Crafted Steel Container

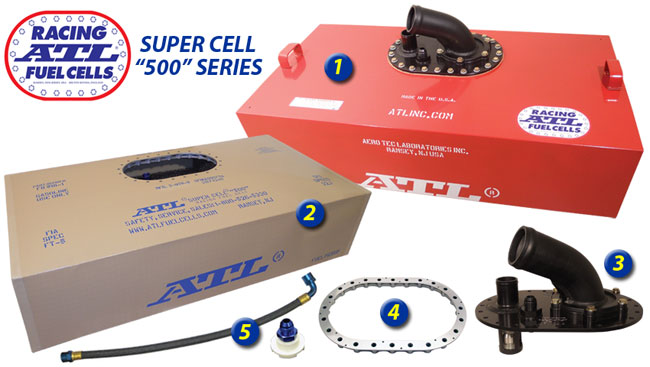

	Extreme-Duty Ballistic Kevlar® Bladder: Light/Thin/Pliable for Max Fuel Capacity Space Age Fiber & Weave Technique Over 2,000 lb./in. Tensile Strength (FT5) Internal Seams for Increased Capacity Resistant to High Aromatic Hydrocarbons (With up to 15% Ethanol Content) SF-112 LARGE PORE Foam Baffling for Slosh & Explosion Suppression - Faster Venting & Lower Clingage
	TF707 Billet Aluminum Fill Plate: Ultra-Fast Fill - 2.5” Fill Neck EZ-Adjust 360 Swivel Ball-Honed Fill Neck Spring-Loaded Aluminum Paddle Valve 1.5” Bullet Vent Valve #10 Outlet with O-Ring Seal
	Billet Aluminum Nut-Ring Light-Weight and Low Mass High Venting
	#10 ScavenJet™ Fuel Pick-Up with TF691 ICORE® Flexible Fuel Pick-Up Hose

• 5 Year Limited Warranty! • Ideal for: NASCAR Nationwide Series and Camping World Truck Series (Non-EFI Applications)

Complete ATL Super Cell "500" Series Fuel Cells by Part #

Replacement Parts

NOMINAL

Capacity

Complete

Container Dimensions

Wt.

Outlet

Container

SF112 FOAM

GAL.

LITERS

Cell Part #

Lbs.

Size

Style

Bladder*

Container

(Large Pore)

18	70	SU518	33.00	17.00	8.00	40	#10	Flange Load	FB518	MC618	BF818
18	70	SU518-1	33.00	17.00	8.00	40	#10	Flange Load	FB518-1	MC618	BF818
		Built-In, 2-Door Right Rear Surge Tank
18	70	SU518-2	33.00	17.00	8.00	40	#10	Flange Load	FB518-2	MC618	BF818
		Built-In, 3-Door Center Rear Surge Tank
18	70	SU518-1L	33.00	17.00	8.00	40	#10	Flange Load	FB518-1L	MC618	BF818
		Built-In, 2-Door Left Rear Surge Tank
*Replacement Bladders include safety foam, nut-ring and gasket
