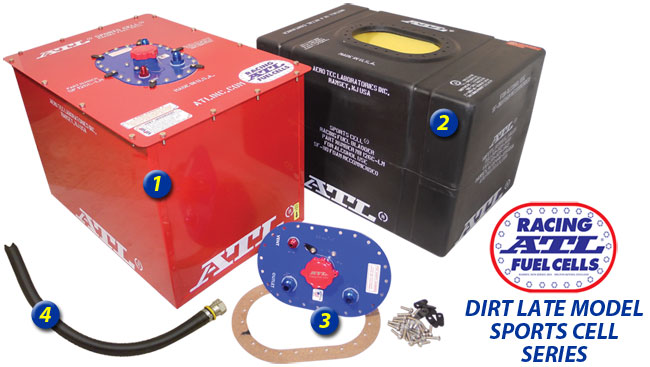

The Components of a DLM Sports Cell® Series Fuel Cell:
 |
 |
 |
Powder Coated 20 Gauge Steel Container (Aluminum Optional) |
 |
Molded, Seamless Hard Rubber Bladder:
- Excellent Resistance to Race Gas, Ethanol & Methanol
- FIA FT3 Certified
- Composite Nut-Ring
- SF-103 Foam Baffling for Slosh & Explosion Suppression (For 100% Alcohol, use SF110 Foam)
|
 |
TF195 Steel Fill Plate :
- (1) Low Profile Twist-Cap & Neck with Flap Valve
- (1) #10 Pick-Up to Right Rear Corner
- (1) #10 Fitting for Dipstick or Return
- (1) #6 Ball-Type Vent Check Valve
|
 |
TF626 “Rigid-Flex” Alky-Tube Pick-Up #10 |
|
• 5 Year Limited Warranty!
• Ideal for: World of Outlaws, FASTRAK, Lucas Oil, MLRA, MARS and All-Star Series |
|
| Complete ATL DLM Sports Cell Series Fuel Cells by Part # |
Replacement Parts |
| NOMINAL |
|
NOMINAL |
|
|
|
- |
|
|
|
| Capacity |
Complete |
Container Dimensions |
Wt. |
Outlet |
Container |
|
|
|
SF103 FOAM |
| GAL. |
LITERS |
Cell Part # |
L" |
W" |
H" |
Lbs. |
Size |
Style |
|
Bladder* |
Container |
(Yellow) |
|
| |
22 |
85 |
SP122B-LM |
16.75 |
25.13 |
13.75 |
40 |
#10 |
Top Load |
|
MB122B |
MC622B |
BF622B |
|
| |
26 |
100 |
SP126C-LM |
16.85 |
25.25 |
17.25 |
47 |
#10 |
Top Load |
|
MB126C |
MC626C-LM |
BF626C |
|
| NEW |
28 |
105 |
SP128-LM |
21.25 |
24.00 |
21.13 |
39 |
#10 |
Top Load |
|
MB128 |
AC628 |
BF628 |
|
| |
32 |
120 |
SP132B-LM |
19.00 |
26.12 |
17.18 |
56 |
#10 |
Top Load |
|
MB132B |
MC632B-LM |
BF632B |
|
| |
32 |
120 |
SP132D-LM |
17.00 |
25.00 |
21.25 |
54 |
#10 |
Top Load |
|
MB132D |
MC632D |
BF632D |
|
| * Replacement Bladders include safety foam, nut-ring and gasket |
| Options |
|
 |
 |
 |
 |
 |
TF600
Aluminum Fill Plate
Add -AF to Cell Part # |
Aluminum Cans
Add -AC to Cell Part # |
SF110
Alcohol Foam
Add -MF to Cell Part # |
TF627
#10 Dip Stick & Guide
Add -DS10 to Cell Part # |
Color Options
No Charge
Add -B for Black
Add -W for White |
|
ATL Dirt Late Model Super Cell® "100" Series - FIA FT3 |
The Components of a DLM Super Cell® "100" Series Fuel Cell:
 |
|
|
Light-Weight .063” Aluminum Container |
|
Super Tough, 3-Layer Soft Bladder:
- Reinforced with Ballistic Nylon
- For Hydrocarbon and E15 Fuels
- Rubber Coated In & Out
- FIA FT3 Certified
- SF-103 Foam Baffling for Slosh & Explosion Suppression
- Composite Nut-Ring
|
|
Light-Weight TF600 Aluminum Fill Plate:
- (1) Low Profile Twist-Cap & Neck with Flap Valve
- (1) #10 Pick-Up to Right Rear Corner
- (1) #10 Fitting for Dipstick or Return
- (1) #6 Ball-Type Vent Check Valve
|
|
(1) #10 ScavenJet™ Pickup with Hose |
|
| • 5 Year Limited Warranty! • 45% LIGHTER than ATL DLM Sports Cells! |
|
| Complete ATL DLM Super Cell "100" Series Fuel Cells by Part # |
Replacement Parts |
| NOMINAL |
|
NOMINAL |
|
|
|
- |
|
|
|
| Capacity |
Complete |
Container Dimensions |
Wt. |
Outlet |
Container |
|
|
|
SF103 FOAM |
| GAL. |
LITERS |
Cell Part # |
L" |
W" |
H" |
Lbs. |
Size |
Style |
|
Bladder* |
Container |
(Yellow) |
|
| |
22 |
85 |
SU122B-LM-AC |
16.75 |
25.13 |
13.75 |
24 |
#10 |
Top Load |
|
FB122B |
AC622B |
BF622B |
|
| |
26 |
100 |
SU126C-LM-AC |
16.85 |
25.25 |
17.25 |
28 |
#10 |
Top Load |
|
FB126C |
AC626C |
BF626C |
|
| NEW |
28 |
105 |
SU128-LM |
21.25 |
24.00 |
21.13 |
29 |
#10 |
Top Load |
|
FB128 |
AC628 |
BF628 |
|
| |
32 |
120 |
SU132B-LM-AC |
19.00 |
26.12 |
17.18 |
31 |
#10 |
Top Load |
|
FB132B |
AC632B |
BF632B |
|
| * Replacement Bladders include safety foam, nut-ring and gasket |
| ATL Dirt Late Model BANTAM™ Series - FIA FT3 |

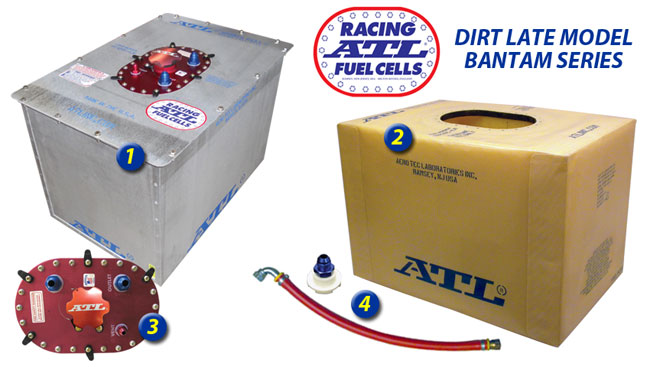

The Components of a DLM BANTAM™ Series Fuel Cell:
 |
|
|
Light-Weight .063” Aluminum Container |
|
ALL-FUEL Light-Weight Bladder:
- Ultra Light-Weight Bladder
- Strong/Thin/Pliable Ballistic Kevlar®
- FIA FT3 Certified
- Only .030” thick (0.7mm), Allows for
Greater Fuel Capacity
- Resistant to High Aromatic Hydrocarbons
- Composite Nut-Ring Flange
- SF-103 Foam Baffling for Slosh & Explosion Suppression
|
|
TF600 Light-Weight Aluminum Fill Plate :
- (1) Low Profile Twist-Cap & Neck with Flap Valve
- (1) #10 Pick-Up to Right Rear Corner
- (1) #10 Fitting for Dipstick or Return
- (1) #6 Ball-Type Vent Check Valve
|
|
(1) #10 ScavenJet™ Pickup with Hose |
|
| • 5 Year Limited Warranty! • For the ULTIMATE LIGHT-WEIGHT ADVANTAGE! |
|
| Complete ATL DLM BANTAM Series Fuel Cells by Part # |
Replacement Parts |
| NOMINAL |
|
NOMINAL |
|
|
|
- |
|
|
|
| Capacity |
Complete |
Container Dimensions |
Wt. |
Outlet |
Container |
|
|
|
SF103 FOAM |
| GAL. |
LITERS |
Cell Part # |
L" |
W" |
H" |
Lbs. |
Size |
Style |
|
Bladder* |
Container |
(Yellow) |
|
| 26 |
100 |
SUBA126C-LM |
16.85 |
25.25 |
17.25 |
26 |
#10 |
Top Load |
|
BB126C |
AC626C |
BF626C |
| 32 |
120 |
SUBA132B-LM |
19.00 |
26.12 |
17.18 |
29 |
#10 |
Top Load |
|
BB132B |
AC632B |
BF632B |
| * Replacement Bladders include safety foam, nut-ring and gasket |

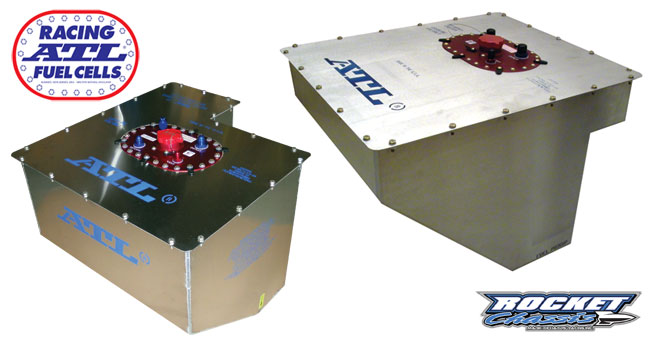

| ATL CUSTOM, Chassis-Specific Dirt Late Model Super Cells® |
 |
| To learn more about ATL's CUSTOM, chassis-specific dirt late model Super Cells® and ATL's new gas AND alcohol compatible light-weight FluoroCells™, please call an ATL sales engineer at 800-526-5330. |
- ATL's Custom Weight-Biased Rocket Chassis fuel cell is available for purchase through Rocket Chassis ONLY. To learn more, please call Rocket at 304-592-3200
|
|
|
|
