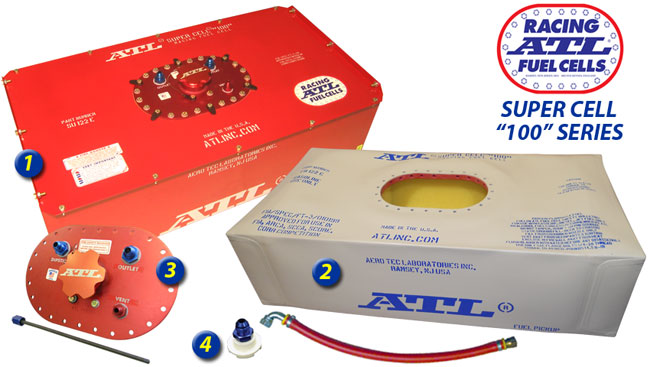

The Components of a
Super Cell® "100" Series
Fuel Cell:
FIA FT3
ATL Super Cell "100" Series
Powder Coated 20 Gauge Steel Container (Aluminum Optional)
Super Tough, 3-Layer Soft Bladder:
  • Reinforced with Ballistic Nylon
  • For Hydrocarbon and E15 Fuels
  • Rubber Coated In & Out
  • FIA FT3 Certified
  • SF-103 Foam Baffling for Slosh & Explosion Suppression
  • Composite Nut-Ring
Light-Weight TF600 Aluminum Fill Plate:
  • (1) Low Profile Twist-Cap & Neck with Flap Valve
  • (1) #6 Vent-Check Roll-Over Valve
  • (1) #6 Dipstick
  • (1) #6 or #8 Outlet Fitting
    (See Chart Below)
(1) #6 or #8 ScavenJet™ Pickup with Hose (See Chart Below)
• 5 Year Limited Warranty! • Ideal for: Road Race, Rally, Circle Track, Dirt Track and Offroad Applications!
Complete ATL Super Cell "100" Series Fuel Cells by Part # Replacement Parts
NOMINAL   NOMINAL       -
Capacity Complete Container Dimensions Wt. Outlet Container       SF103 FOAM
GAL. LITERS Cell Part # L" W" H" Lbs. Size Style   Bladder*** Container (Yellow)
8 30 SU108 20.50 12.50 9.13 19 #6 Top Load   FB108 MC608 BF608
10 40 SU110 24.25 12.75 10.25 21 #6 Top Load   FB110 MC610 BF610
12 45 SU112 20.40 17.75 9.50 23 #6 Top Load   FB112 MC612 BF612
15 60 SU115 24.50 17.75 9.50 27 #8 Top Load   FB115 MC615 BF615
15 60 SU115B 20.00 17.00 12.00 26 #8 Top Load   FB115B MC615B BF615B
17 65 SU117* 34.00 17.50 7.13 30 #8 Vertical Edge   FB117 MC617 BF617
18 70 SU118D** 33.00 17.00 8.00 34 #8 Flange Load   FB118D MC618 BF618D
18 70 SU118M-AC 27.25 17.00 10.40 31 #8 Bottom Load   FB118M MC618M BF618M
18 70 SU118W-AC 34.00 19.12 9.5 & 4.25 31 #8 Vertical Edge   FB118W MC618W BF618W
22 85 SU122A 25.88 25.88 8.50 33 #8 Top Load   FB122A MC622A BF6221
22 85 SU122B 25.13 16.88 13.75 32 #8 Top Load   FB122B MC622B BF622B
22 85 SU122C 34.00 17.50 9.50 34 #8 Vertical Edge   FB122C MC622C BF622C
22 85 SU122E 33.00 17.00 9.25 33 #8 Vertical Edge   FB122E MC622E BF622E
22 85 SU122F* 31.50 17.75 10.00 36 #8 Vertical Edge   FB122F MC622F BF622F
22 85 SU122H* 34.00 17.50 9.50 34 #8 Vertical Edge   FB122H MC622H BF622H
22 85 SU122W 34.00 19.12 11 & 6 34 #8 Vertical Edge   FB122W MC622W BF622W
24 90 SU124A-AC 24.50 24.50 10.25 24 #8 Shoe Box   FB124A MC624A BF624A
24 90 SU124B-AC 25.00 17.00 14.50 24 #8 Shoe Box   FB124B MC624B BF624B
24 90 SU124M-AC*** 24.50 24.50 10.25 24 #8 Shoe Box   FB124M MC624M BF624M
26 100 SU126A 30.00 17.75 14.50 40 #8 Top Load   FB126A MC626A BF626A
26 100 SU126B 30.00 14.50 17.75 39 #8 Top Load   FB126B MC626B BF626B
26 100 SU126C 25.25 16.85 17.25 39 #8 Top Load   FB126C MC626C BF626C
29 110 SU129 24.00 24.00 12.50 42 #8 Top Load   FB129 MC629 BF629
32 120 SU132A 26.00 26.00 14.00 45 #8 Top Load   FB132A MC632A BF632A
32 120 SU132B 26.38 19.00 17.25 45 #8 Top Load   FB132B MC632B BF632B
32 120 SU132C 34.25 17.75 14.75 45 #8 Top Load   FB132C MC632C BF632C
32 120 SU132D 25.00 17.00 21.00 45 #8 Top Load   FB132D MC632D BF632D
44 170 SU144 25.88 25.88 17.00 54 #8 Mid-Lip   FB144 MC644 BF644
* Indicates Fill Plate Offset ** 18 Gauge Steel Container *** Fill Plate Offset, Designed for Use in Troyer Dirt Modified
Replacement Bladders include safety foam, nut-ring, gasket and ScavenJet™

Options
ATL TF-702 Quick Fill Plate
TF703
Off-Set Remote-Fill
Paddle Valve™
Add -OS to Cell Part #		 TF525
Quick-Fill
Paddle Valve™
Add -PV to Cell Part #		 TF702
Quick-Fill, Off-Set
Paddle Valve™
Add -PV2 to Cell Part #		 TF193A-184A
Quick-Fill
Flapper Valve™
Add -FV to Cell Part #		 Built-In Surge Tank
Add -BI2 (2-Door) to P/N
(Circle Track)
Add -BI3 (3-Door) to P/N
(Road Race/Off-Road)

Fuel Level Kit
Capacitance Style
Add -LS/C to Cell Part #		 Fuel Level Kit
Float Style
Add -LS/F to Cell Part #		 Aluminum Can
Add -AC to Cell Part #
