ATL Fuel Pressure Regulators

Home > Motor Racing > ATL Fuel Pressure Regulators

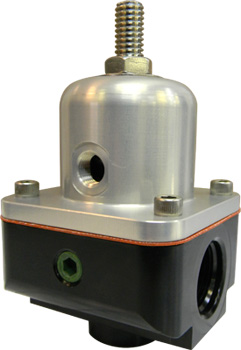

High Pressure Fuel Regulator

Electronic Fuel Injection (EFI)

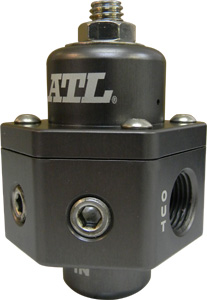

Low Pressure Fuel Regulator

Carburetor Application

P/N: CFD-850-HP

Clear Anodized Aluminum Top
All-Fuel Compatible
Adjustable from 28 psi to 120 psi
(1) 1/8 NPT Gauge Port
(1) 1/8 NPT Boost Reference Port
(1) #10 Inlet Port
(1) #10 Outlet Port
(1) #8 Return Port
Fittings Not Supplied

Plumbing Diagrams
Click To Enlarge

P/N: CFD-800-LP

Anodized Aluminum
Compatible With Race Gas MAX E15
Maximum Inlet Pressure of 20 psi
Adjustable from 5 psi to 12 psi
(2) 1/8 NPT Gauge Ports
(2) 3/8 NPT Outlet Ports
(1) 3/8 NPT Inlet Port
Includes Mounting Bracket & Hardware
Fittings Not Supplied

Plumbing Diagrams
Click To Enlarge
