ATL External Swirl Pots

Home > Motor Racing > ATL External Swirl Pots
All-Fuel Compatible, FIA FT3 Approved, Molded External Swirl Pot
Eliminate Fuel Starvation and Engine Hesitation!

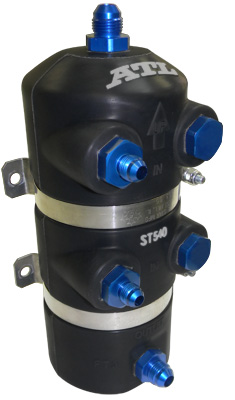

ATL Molded FIA FT3 Approved Swirl Pot

P/N: ST540

1.5 Liter (0.4 Gallon) Capacity

Fuel Compatibility: Race Gas, Ethanol, & Methanol Blends Up To 100%

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: Roto-Molded Hard Rubber

Swirl Pot Includes:

• (4) Inlet Ports (2 -6 Fittings, 2 Plugs)

• (1) -8 Return

• (1) -8 Outlet

• (2) Aluminum Mounting Clamps

Alternate Fitting Configurations Available



Aluminum Swirl Pot Base Plate
Optional Aluminum Mounting Base Plate Add -BP to Swirl Pot Part #

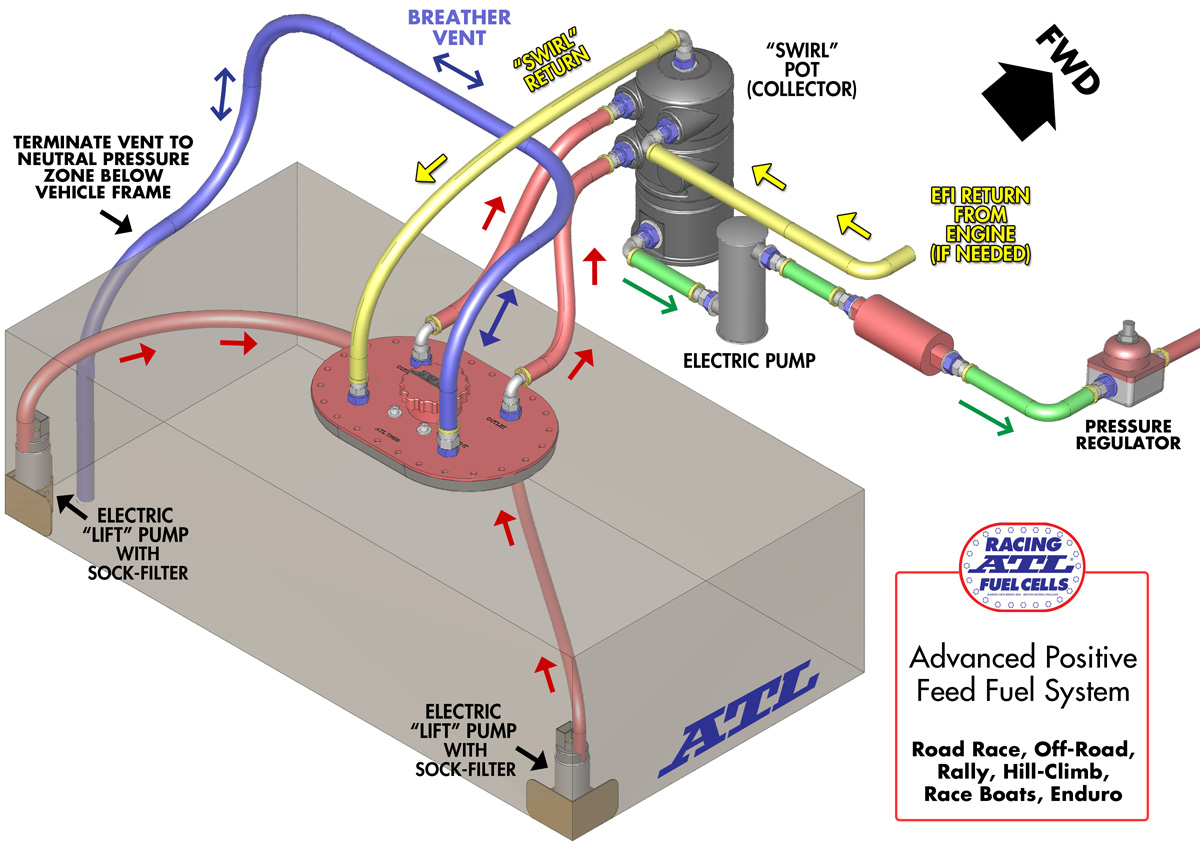

Advanced Positive Feed Fuel System Diagram
Click Diagram to Enlarge

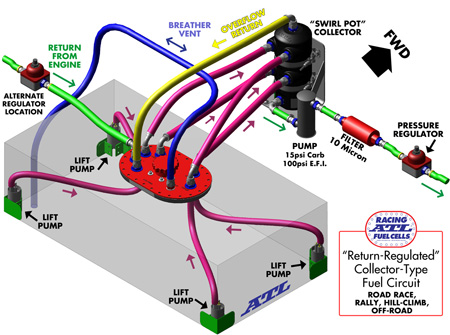

"Return-Regulated" Collector-Type Fuel Circuit Diagram
Click Diagram to Enlarge
