ATL Specialty Fuel Cells for Porsche, Ferrari & More...

Home > Motor Racing > ATL Specialty Fuel Cells for Porsche, Ferrari & More...
Porsche Fuel Cells
Porsche 911 Fuel Cell
Fits Model Year 1989 & Earlier		 Porsche 911 Fuel Cell
Fits Model Year 1989 & Earlier		 Porsche 996 Fuel Cell Porsche 997 Fuel Cell
Shown With Optional Carbon Cover
Porsche 911 Fuel Cell Porsche 911 Fuel Cell Porsche 996 Fuel Cell Porsche 997 Fuel Cell

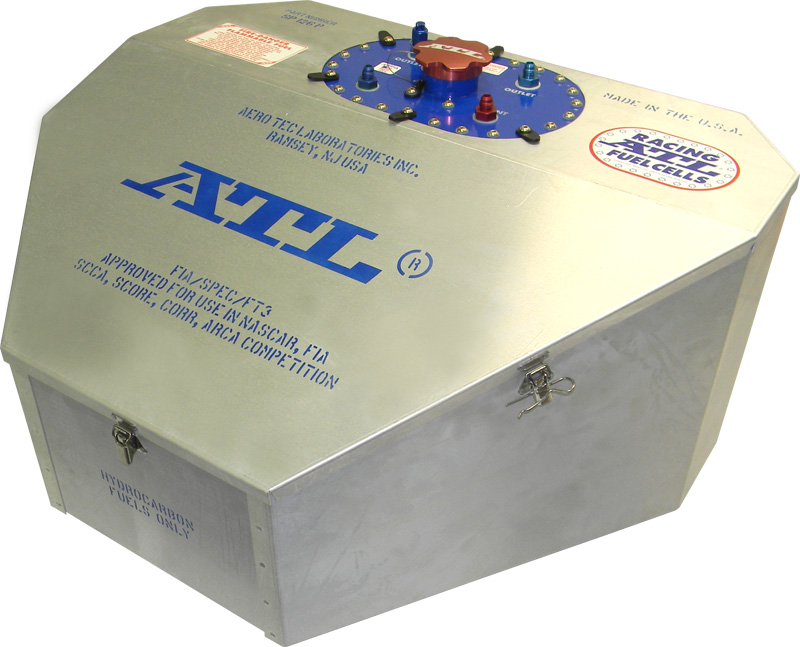

P/N: SP126P

26 Gallons (100 Liters)

Fuel Compatibility: Race Gas, Ethanol, & Methanol Blends Up To 100%

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: Roto-Molded Hard Rubber

Fuel Cell Includes:

• (1) .063" Aluminum Container

• (1) Powder-Coated Steel Regular Fill Plate With Flap Valve and Billet Aluminum Twist-Off Cap

• (1) -6 Rollover Vent Valve

• (1) -6 Pick-Up with Strainer

• (1) -6 Fuel Return

• Internal Foam Baffle

Optional Extra’s:

• FIA Hologram

P/N: SU117P

17 Gallons (65 Liters)

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Fuel Cell Includes:

• (1) .063" Aluminum Container

• (1) Anodized Aluminum Regular Fill Plate With Flap Valve and Billet Aluminum Twist-Off Cap

• (1) -6 Rollover Vent Valve

• (1) -6 ScavenJet™ Pick-Up

• (1) -6 Fuel Return

• Internal Foam Baffle

• Aluminum Mounting Kit

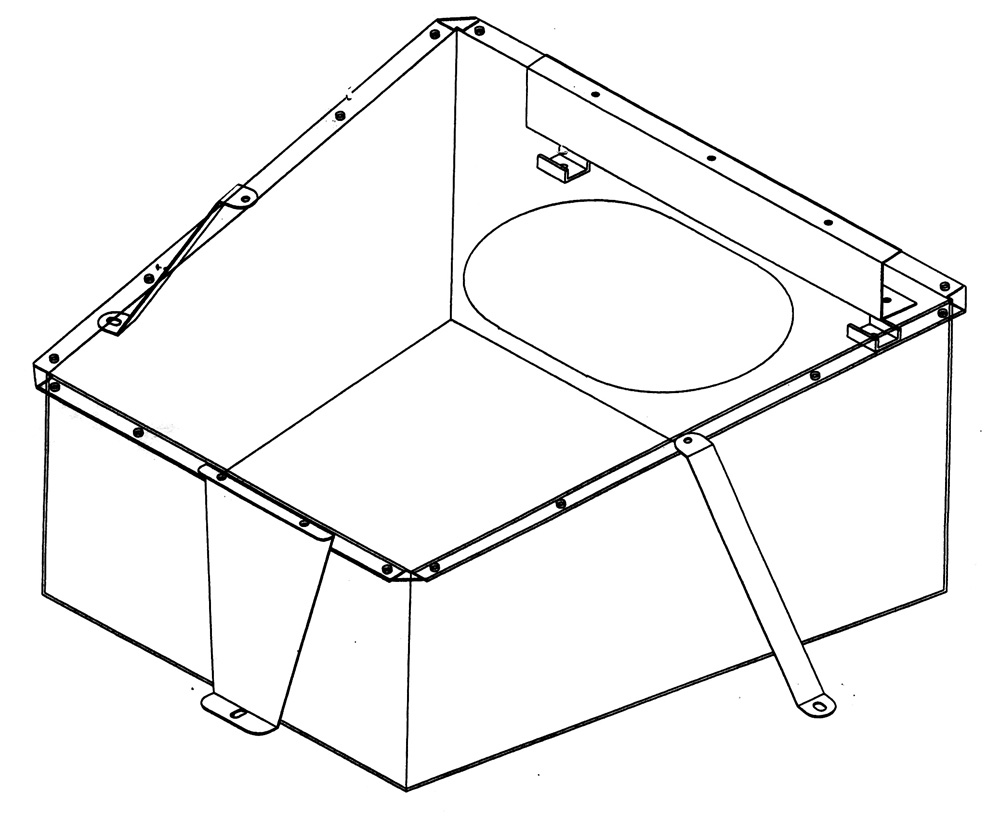

(Click Here for Mounting Diagram)

Optional Extra’s :

• Built-In 3-Door Surge Tank
(Add -BI3 to Part Number)

• FIA Hologram

P/N: POR996

26 Gallons (100 Liters)

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Fuel Cell Includes:

• (1) Ø2" Dual Filler Dry Break

• (4) Internal Lift Pumps

• Integral Reserve and main fuel collector chambers

• Internal Foam Baffle

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Carbon covers availiable

• FIA Hologram

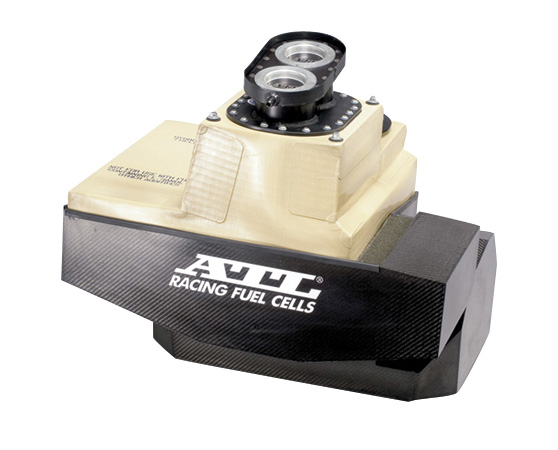

P/N: POR997

26 Gallons (100 Liters)

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Fuel Cell Includes:

• (1) Ø2" Dual Filler Dry Break

• (4) Internal Lift Pumps

• Integral Reserve and main fuel collector chambers

• Internal Foam Baffle

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Carbon covers availiable

• FIA Hologram

Ferrari 360/430, and F-40 Fuel Cells
  Ferrari 360/430 Fuel Cell Left and Right Bladder Set Ferrari F-40 Euro Fuel Cell Left and Right Bladder Set
  Ferrari 360/430 Fuel Cell Ferrari F-40 Euro Fuel Cell





P/N: FB10-5526

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Left Hand Fuel Cell Includes:

• Internal Foam Baffle

• Nut Rings and Gaskets

Right Hand Fuel Cell Includes:

• Internal Foam Baffle

• Nut Rings and Gaskets

Optional Extra’s:

• FIA Hologram

P/N: FB10-2468

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Left Hand Fuel Cell Includes:

• (1) Ø87mm Aluminium Filler Neck

• (1) -6 Rollover Vent Valve

• (1) Level Gauge, Nut Ring, Oval side Nut Ring (Customer to re-fit original plate)Sumped Internal Collector with bottom, Nut Ring and Plate

• (1) Ø35mm Aluminium Neck (to connect up to the original F40 balance pipe)

• (1) -10 Fuel Outlet

• (1) -6 Fuel Return

• Full Foam Baffling

Right Hand Fuel Cell Includes:

• (1) Ø87mm Aluminium Filler Neck

• (1) -6 Rollover Vent Valve, Oval side Nutring and plate

• (1) Ø35mm aluminium neck (to connect up to the original F40 balance pipe

• Full Foam Baffling

Please Note:

• Existing Ferrari Level gauge, on O.E. Cells can be retro-fitted onto the ATL Fuel Cell set. Some Modification will be required to the existing balance pipe and possibly to the -10 fuel feed and -6 Return hose assemblies.

Optional Extra’s:

• FIA Hologram





Other Specialty Fuel Cells
Caterham Racing Fuel Cell Ford Mustang FR500C Generation 1 Chevy Camaro & Ford Mustang Fuel Cell BMW Super "Well Cell"
Caterham Racing Fuel Cell Ford Mustang FR500C Chevy Camaro & Ford Mustang Fuel Cell BMW Super "Well Cell"

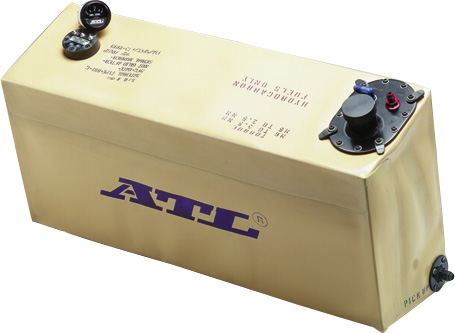

P/N: FC10-3139

14 Gallons (55 Liters)

Fuel Compatibility: Race Gas, Ethanol, & Methanol Blends Up To 100%

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Dimensions: 800 X 230 X 420mm

Fuel Cell Includes:

• Internal Baffle and collector system containing (5) ATL trap doors fitted

• (1) 4x6 Oval access plate with Ø2" Filler Neck and Screw Cap

• (1) -6 Rollover Vent Valve

• (1) -6 Fuel Return (..Return hose routed back into Internal Fuel Collector)

• (1) -8 Fuel Outlet

• (1) Internal Canister Fuel Filter (25 microns) fitted

• Internal Foam Baffle

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• ATL Fuel Level Sender (as shown in photo)

• Alloy covers available

• FIA Hologram

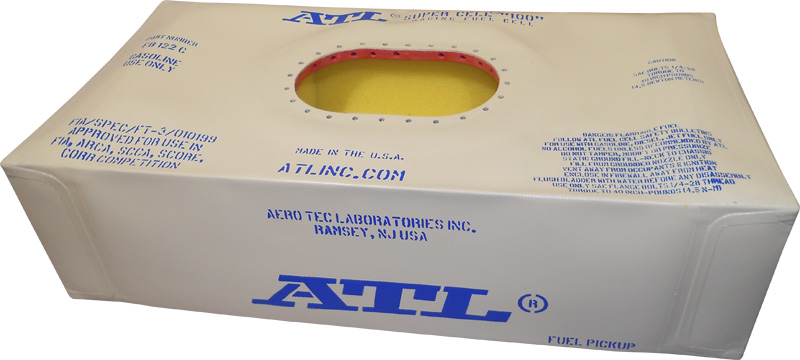

P/N: FB10-3286

22 Gallons (85 Liters)

Fuel Compatibility: Race Gas, Ethanol, & Methanol Blends Up To 100%

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Fuel Cell Includes:

• Internal Foam Baffle

• Nut-Ring with Gasket

• 3-Door Internal Collector with Pump Holder

Optional Extra’s:

• FIA Hologram

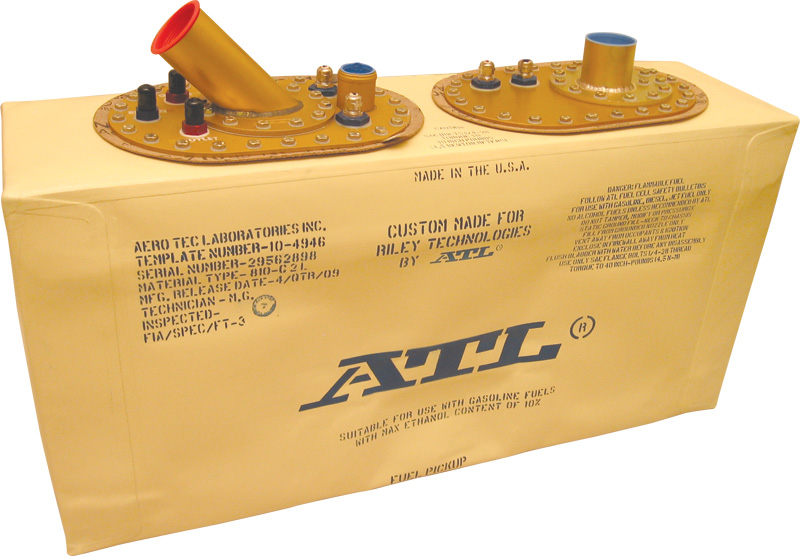

P/N: Call For Available Styles



Fuel Compatibility: Race Gas, Ethanol, & Methanol Blends Up To 100%

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

ATL Offers Bladders to Fit Most Later Model RACE VERSIONS of the New Chevrolet Camaro and Ford Mustang. Call for Details.

Optional Extra’s:

• FIA Hologram

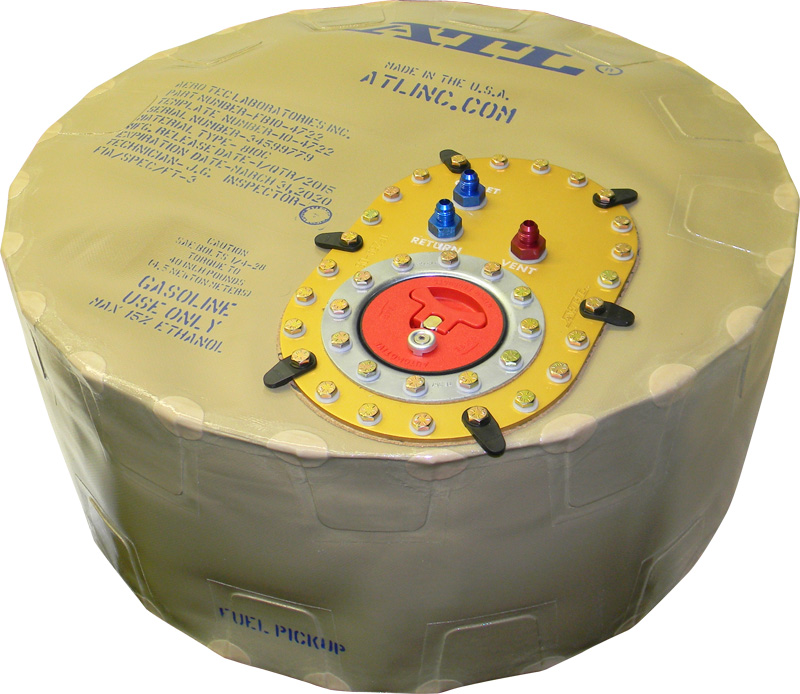

P/N: FC10-4722

17 Gallons (65 Liters)

Fuel Compatibility: Race Gas, Ethanol, & Methanol Blends Up To 100%

FIA Approved

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Fuel Cell Includes:

• Internal Foam Baffle

• (1) -6 Rollover Vent Valve

• (1) -6 Fuel Return

• (1) -6 Fuel Outlet

• Nut-Ring with Gasket

• 3-Door Internal Collector

• Fill Plate With Flush-Cap

Optional Extra’s:

• FIA Hologram
