The Components of a
Saver Cell® Series
Fuel Cell: |
 |
 |
 |
Molded, Seamless Hard Rubber Bladder:
- Excellent Resistance to Race Gas, Ethanol & Methanol
- FIA FT3 Certified
- Composite Nut-Ring
- SF-103 Foam Baffling for Slosh & Explosion Suppression (For 100% Alcohol, use SF110 Foam)
|
 |
TF195 Steel Fill Plate :
- (1) Low Profile Twist-Cap & Neck with Flap Valve
- (1) #6 or #8 Outlet
(See Chart Below)
- (1) #6 Vent-Check Roll-Over Valve
|
 |
(1) #6 or #8 “Duck Foot” Pick-Up with Fuel Trap & Filter
(See Chart Below) |
| |
|
|
• 5 Year Limited Warranty!
• Ideal for: Road Race, Rally, Circle Track, Dirt Track, Hotrod, Drag and Offroad Applications!
• Also Very Popular with the Armed Forces for Defense Vehicles, SatCom Trailers,
Launchers, Generators & Assault Boats |
|
| Complete ATL Saver Cell Series Fuel Cells by Part # |
Replacement Parts |
| NOMINAL |
|
NOMINAL |
|
|
- |
|
|
|
| Capacity |
Complete |
Container Dimensions |
Wt. |
Outlet |
|
|
SF103 FOAM |
SF110 FOAM |
| GAL. |
LITERS |
Cell Part # |
L" |
W" |
H" |
Lbs. |
Size |
|
Bladder** |
(Yellow) |
(Grey) |
|
| 5 |
20 |
SA105* |
13.00 |
13.00 |
9.00 |
9 |
#6 |
|
MB105 |
BF605 |
BF905 |
| 8 |
30 |
SA108 |
19.87 |
12.00 |
8.75 |
14 |
#6 |
|
MB108 |
BF608 |
BF908 |
| 8 |
30 |
171115 |
Well Cell 22" Dia. |
6.50 |
15 |
#6 |
|
MB108W |
BF608W |
BF908W |
| 10 |
40 |
SA110 |
23.00 |
12.00 |
9.75 |
15 |
#6 |
|
MB110 |
BF610 |
BF910 |
| 12 |
45 |
SA112 |
19.75 |
17.18 |
9.18 |
16 |
#6 |
|
MB112 |
BF612 |
BF912 |
| 12 |
45 |
171110 |
Well Cell 22" Dia. |
9.00 |
17 |
#6 |
|
MB112W |
BF612W |
BF912W |
| 15 |
60 |
SA115 |
23.75 |
17.18 |
9.18 |
18 |
#8 |
|
MB115 |
BF615 |
BF915 |
| 22 |
85 |
SA122A |
25.31 |
25.31 |
8.25 |
23 |
#8 |
|
MB122A |
BF622A |
BF922A |
| 22 |
85 |
SA122B |
24.43 |
16.31 |
13.25 |
22 |
#8 |
|
MB122B |
BF622B |
BF922B |
| 22 |
85 |
SA122C |
33.18 |
17.06 |
9.25 |
22 |
#8 |
|
MB122C |
BF622C |
BF922C |
| 26 |
100 |
SA126A |
28.90 |
17.00 |
13.95 |
26 |
#8 |
|
MB126A |
BF626A |
BF926A |
| 26 |
100 |
SA126B |
28.90 |
13.95 |
17.00 |
26 |
#8 |
|
MB126B |
BF626B |
BF926B |
| 26 |
100 |
SA126C |
24.75 |
16.38 |
16.75 |
25 |
#8 |
|
MB126C |
BF626C |
BF926C |
| 32 |
120 |
SA132A |
25.12 |
25.12 |
13.00 |
29 |
#8 |
|
MB132A |
BF632A |
BF932A |
| 32 |
120 |
SA132B |
25.50 |
18.50 |
16.75 |
28 |
#8 |
|
MB132B |
BF632B |
BF932B |
| 32 |
120 |
SA132C |
33.25 |
17.18 |
14.12 |
28 |
#8 |
|
MB132C |
BF632C |
BF932C |
| 32 |
120 |
SA132D |
24.75 |
16.38 |
21.25 |
29 |
#8 |
|
MB132D |
BF632D |
BF932D |
| 44 |
170 |
SA144 |
25.12 |
25.12 |
16.75 |
34 |
#8 |
|
MB144 |
BF644 |
BF944 |
* SP105 uses a 4"x6" fill plate, will not accept any options except for SF110
** Replacement Bladders include safety foam, nut-ring and gasket |
| Options |
|
 |
 |
 |
 |
 |
TF703
Off-Set Remote-Fill
Paddle Valve™
Add -OS to Cell Part # |
TF525
Quick-Fill
Paddle Valve™
Add -PV to Cell Part # |
TF600
Aluminum Fill Plate with Dip Stick
Add -AF to Cell Part #
2 lbs. Lighter! |
TF207
Dip Stick Kit
Add -DS to Cell Part # |
Aluminum Can
Add -AC to Cell Part # |
|
 |
 |
 |
 |
 |
CFD-650-HP
"Black Box" Surge Tank Kit w/ Dual (CFD-104) HP Pumps
Add -ST5 to Cell Part # |
CFD-700-HP
"Black Box" Surge Tank Kit w/ HP Bosch 044 (KS-163) Pump
Add -ST4 to Cell Part # |
CFD-600-HP
"Black Box" Surge Tank Kit w/ HP (CFD-104) Pump
Add -ST2 to Cell Part # |
ST528
3-Door Molded Surge Tank
Add -ST1 to Cell Part # |
SF110
Alcohol Foam
Add -MF to Cell Part # |
 |
 |
 |
Fuel Level Kit
Capacitance Style
Add -LS/C to Cell Part # |
Fuel Level Kit
Float Style
Add -LS/F to Cell Part # |
Custom Configurations
ATL can change the fill-plate locations so that the width and height are re-oriented.
SA108-12 Shown |

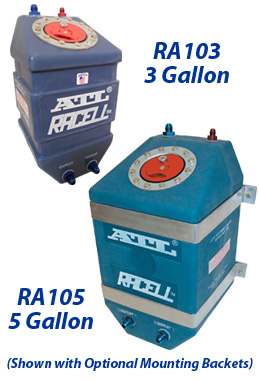

| ATL Racell® Series |
|
 |
3" Fill Cap
- (1) 3" Aircraft-Style Flush Cap and Nut-Ring
|
Molded, Seamless Hard Rubber Bladder:
- Excellent Resistance to Race Gas, Ethanol & Methanol
- FIA FT3 Certified
- (2) #8 (1/2") Lower Outlets
- (1) #8 (1/2") Return
- (1) #6 (3/8") Vent with Check Valve
- Anti-Surge Foam Baffling (Specify SF110 for Alcohol Use)
|
| ATL Racell™ Specifications |
Replacement Parts |
| NOMINAL |
|
NOMINAL |
|
|
- |
|
|
| Capacity |
Complete |
Container Dimensions |
Wt. |
Outlet |
|
SF103 FOAM |
SF110 FOAM |
| GAL. |
LITERS |
Cell Part # |
L" |
W" |
H" |
Lbs. |
Size |
|
(Yellow) |
(Grey) |
|
| 3 |
12 |
RA103 |
8.00 |
8.00 |
15.00 |
6 |
#8 |
|
BF605 |
BF905 |
| 5 |
20 |
RA105 |
10.00 |
10.00 |
17.00 |
8 |
#8 |
|
BF608 |
BF908 |
| Optional Mounting Brackets |
| Mounting Brackets for RA103: KS111 Mounting Brackets for RA105: KS112 |
|
|
