ATL World Rally Fuel Cells

Home > Motor Racing > ATL World Rally Fuel Cells

	Subaru World Rally Fuel Cells

Subaru Impreza (GRP N) 2005 Fuel Cell

Subaru Impreza (GRP N) 2002 Fuel Cell

Subaru Impreza (GRP A) Fuel Cell

Subaru Impreza (GRP N) Fuel Cell

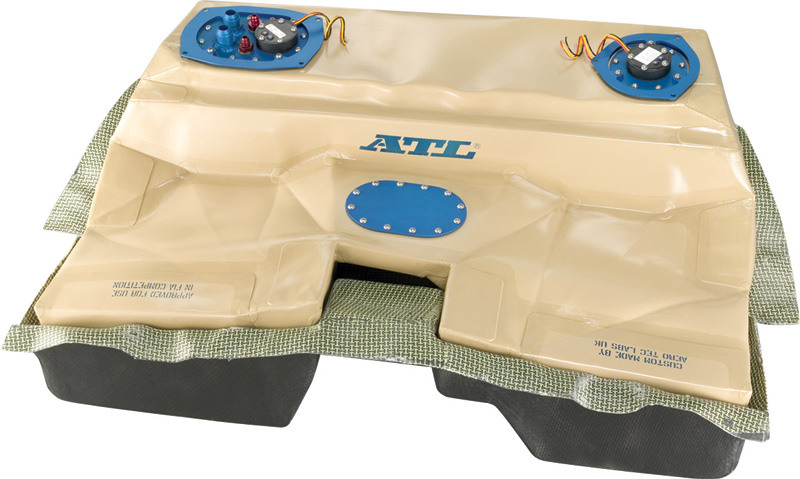

P/N: SUB82

82 Liters

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Dimensions: 1000 X 595 X 300mm

Underfloor Mounted Fuel Cell Includes:

• (2) ATL Fuel Level Gauge Systems

• (1) -6 Rollover Vent Valve

• (1) -6 Fuel Return

• (1) -6 Fuel Outlet

• (2) -12 weld-on's to connect to FIA/Staubli refuelling system couplings

• Full Foam Baffling

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Carbon Cover

• FIA Hologram

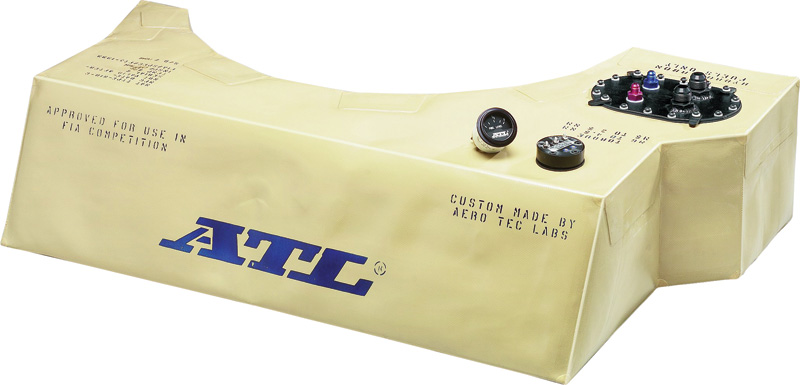

P/N: SUB80-12

80 Liters

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Dimensions: 1090 X 625 X 230mm

Fuel Cell Includes:

• (1) ATL Fuel Level Gauge System

• (1) -6 Rollover Vent Valve

• (1) -6 Fuel Return

• (1) -8 Fuel Outlet

• (2) -12 weld-on's (FIA WRC Spec) - To connect to Staubli refuelling system couplingsFull Foam Baffling

Optional Extra’s :

• As above but with Ø2¼" x 45° filler neck and FIA Non-return Valve

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Aluminium Container

• FIA Hologram

P/N: SUB75

75 Liters

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Dimensions: 1220 X 340 X 260mm

Fuel Cell Includes:

• (1) Oval M6 Nutring (Which can accept a standard Prodrive Collector tank)

• (1) VDO Sender Nutring

• (1) -12 Vent Adapter mounted on plateFull Foam Baffling

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• FIA Hologram

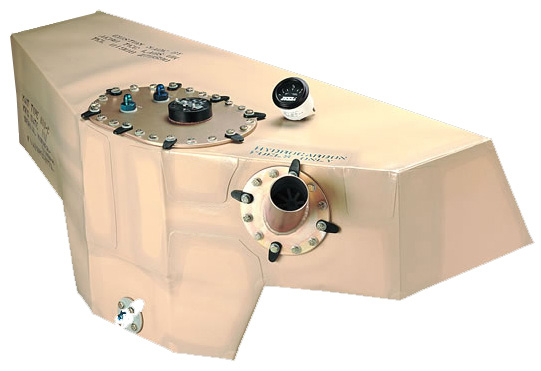

P/N: SUB70

70 Liters

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Dimensions: 960 X 380 X 270mm

Fuel Cell Includes:

• (1) 6x10 Top plate

• (1) ATL Fuel Level Gauge System

• (1) -6 Rollover Vent Valve

• (1) -6 Fuel Return

• (1) -8 Fuel Pickup mounted in lower sump

• (1) Ø2¼" x 45° Filler Neck for external refuelling

Full Foam Baffling

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Carbon Cover (pump tray and spill tray)

• FIA Hologram

	Mitsubishi World Rally Fuel Cells

Mitsubishi Lancer EVO 10 Fuel Cell

Mitsubishi Lancer EVO 8 Fuel Cell

Mitsubishi Lancer EVO 7 Fuel Cell

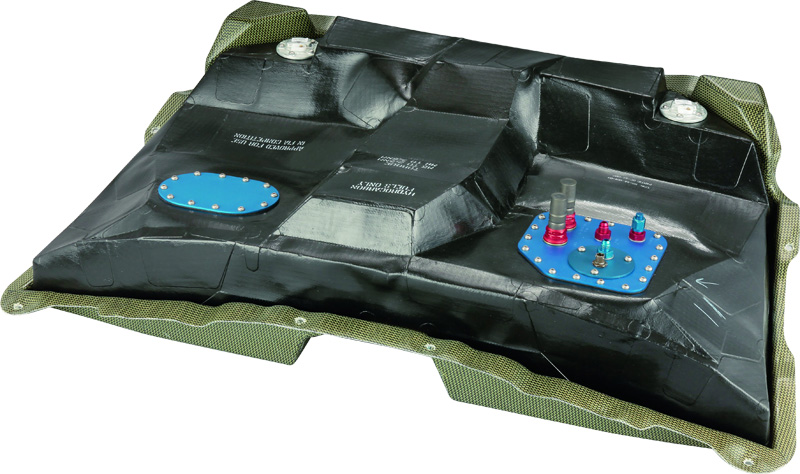

P/N: EVO10/80

80 Liters

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Specification: FIA / FT3-1999 (Photo shows FT3.5 Version)

ATL Material: ATL-810-C

Dimensions: 1010 X 480 X 280mm

Underfloor Mounted Fuel Cell Includes:

• (1) Internal Collector

• (1) 7 bar Walbro Fuel Pump with Sock Filter

• (2) -6 Rollover Vent Valves

• (2) ATL Fuel Level Senders

• (1) -6 Fuel Return-12 Staubli refueling fittingsInternal Foam Baffle

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Carbon covers availiable for cell and top plate

• FIA Hologram

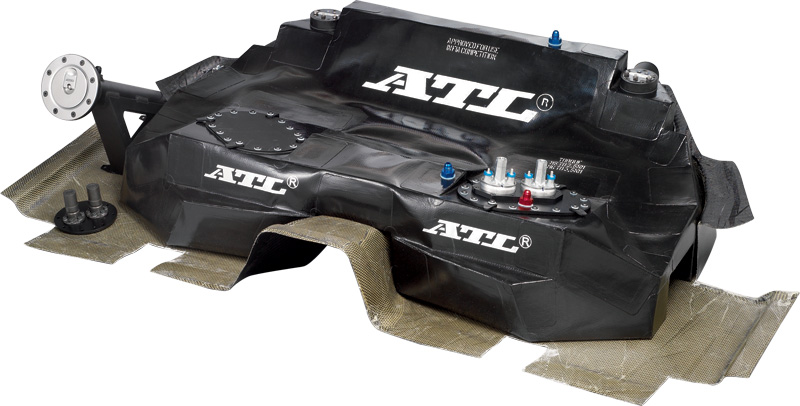

P/N: EVO8/72

72 Liters

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Specification: FIA / FT3-1999 (Photo shows FT3.5 Version)

ATL Material: ATL-810-C

Dimensions: 1050 X 580 X 275mm

Fuel Cell Includes:

• (2) Internal Collectors Fitted

• (2) 5 bar Bosch Fuel Pumps mounted on top plate

• (2) -6 Rollover Vent Valve

• (2) ATL Fuel Level Senders

• (1) -6 Fuel Return

• Custom Filler Neck with -12 Staubli refuelling fittings

• Internal Foam Baffle

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Carbon covers availiable

• FIA Hologram

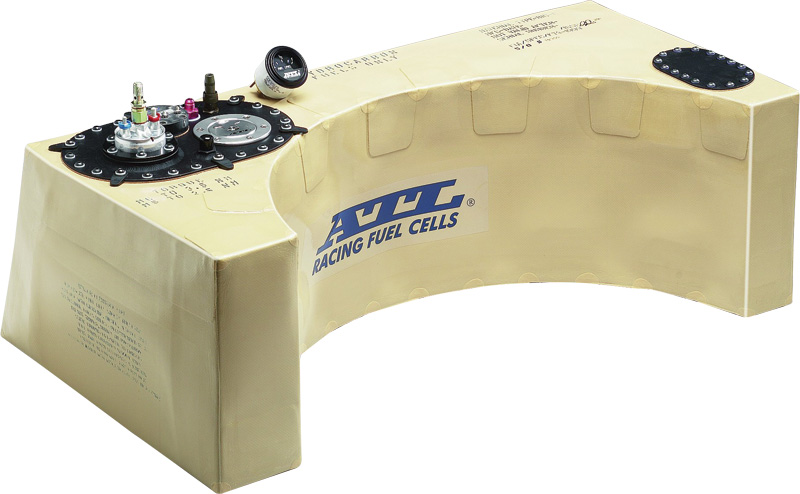

P/N: EVO7/70

70 Liters

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Dimensions: 870 X 520 X 295mm

Fuel Cell Includes:

• (2) AC Low pressure pumps

• (1) Integral Swirl Pot on a 6x10 top plate

• (1) -6 Rollover Vent Valve(1) ATL Fuel Level Gauge System

• (1) 5 bar Bosch pump with Stainless Steel pre filter

• (1) -6 Fuel ReturnInternal Foam Baffle

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Alumiumium covers availiable

• FIA Hologram

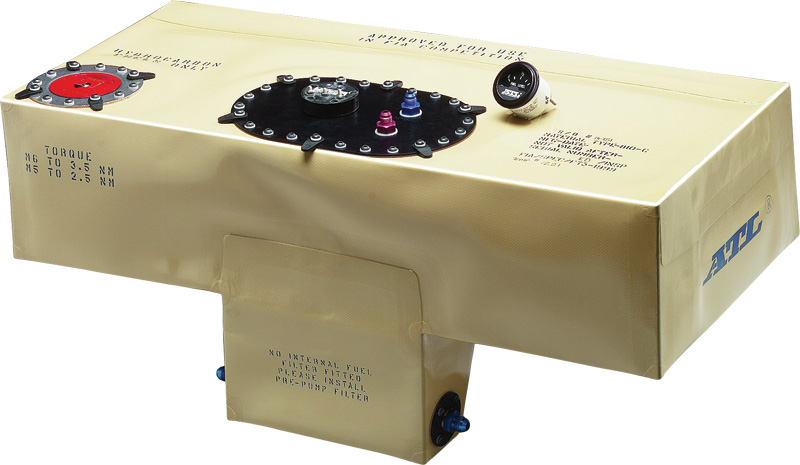

P/N: EVO7/80

80 Liters

Fuel Compatibility: Race Gas With MAXIMUM 15% Blended Ethanol Content

FIA Specification: FIA / FT3-1999

ATL Material: ATL-810-C

Dimensions: 850 X 440 X 215mm

Fuel Cell Includes:

• (1) ATL Flush Filler Cap

• (1) -6 Fuel Return

• (1) -6 Rollover Vent Valve

• (1) ATL Fuel Level Gauge System

• (1) 6x10 top plate

• (1) -8 Fuel Outlet taken from lower sump (option of a 2nd outlet on opposite side of sump)Internal Foam Baffle

Optional Extra’s:

• Available in FIA/FT3.5-1999 specification (lightweight Kevlar)

• Alumiumium & Carbon covers availiable

• FIA Hologram
